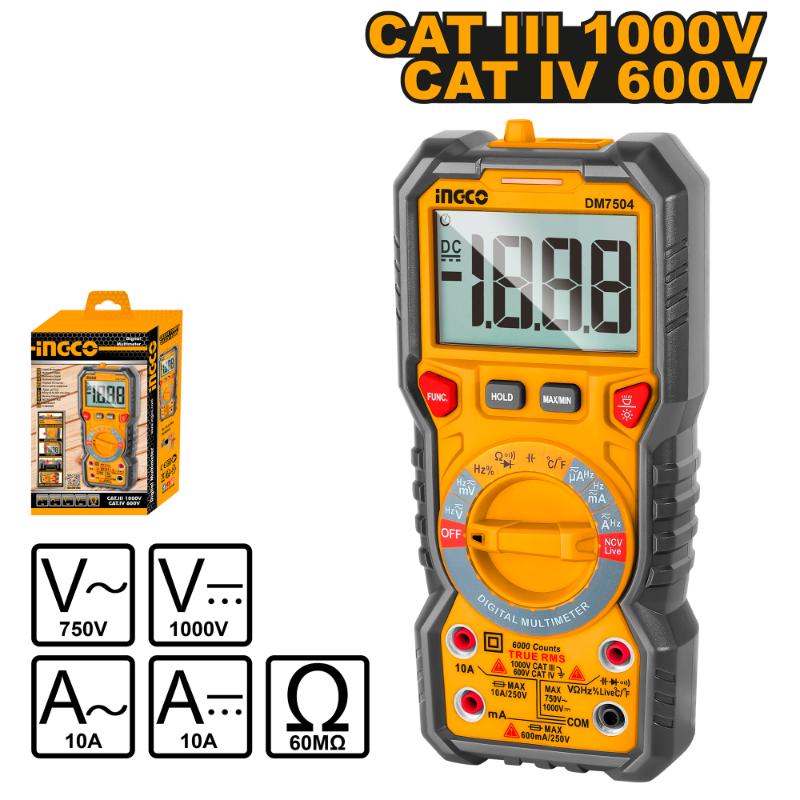

Meter for Electricity (Multimeter) DM7504

Description

Digital Multimeter

1. 6 000 counts true RMS digital multimeter
2. Non-contact voltage detection
3. Live line or neutral Line distinguish
4. Data hold
5. DC Voltage: 600 mV/6V/60V/600V/1 000V ± (0.5% + 3)
6. AC Voltage: 600 mV/6V/60V/600V/750V ± (0.8% + 5)
7. DC Current: 600 μA/6 mA/60 mA/600 mA/10A ± (1.2% + 3)
8. AC Current: 600 μA/6 mA/60 mA/600 mA/10A ± (1.5% + 3)
9. Resistance: 600 Ω/6 kΩ/60 kΩ/600 kΩ ± (1.0% + 3); 6 MΩ/60 MΩ ± (1.5% + 3)
10. Capacitance: 10 nf/100 nf/1 000 nf/10 μF/100 μF/1 000 μF ±(4.0%+5) ; 10 mf/100 mf ± (5.0% + 5)
11. Frequency: 10 Hz/100 Hz/1 000 Hz/10 KHz/100 KHz/1 000 KHz/10 MHz ± (1.0% + 3)
12. Duty cycle: 1% ~ 95% ± (3.0% + 3)
13. Diode test
14. Continuity test
15. Temperature: -20 ~ 1 000℃(-8 ~ 1 832°F)

Includes:

1. Backlight function
2. Flash light function
3. Lower battery indication function
4. Input LED indication function
5. High voltage prompt function
6. 2 Pieces LR6 AA batteries
